Model Year 2026 |
Adventure Touring
|

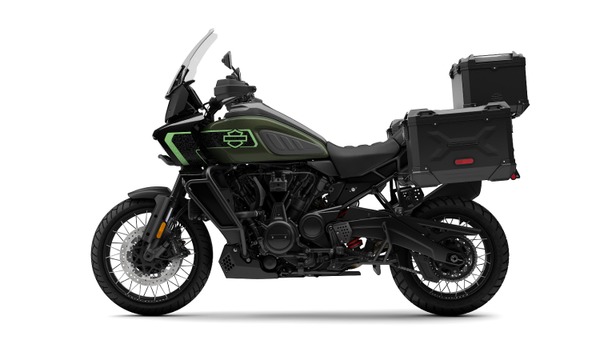

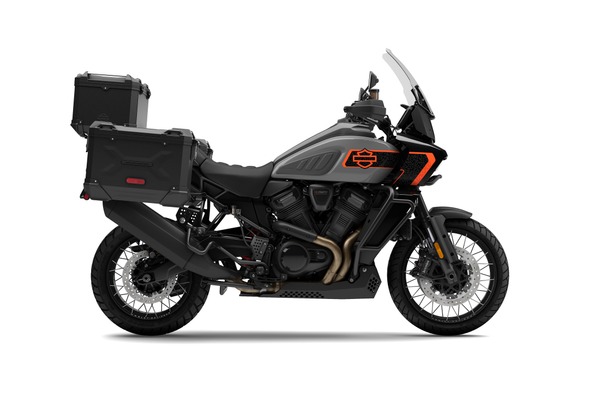

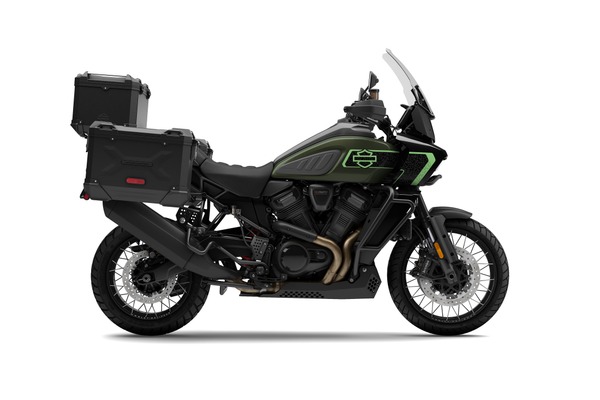

Pan America 1250 Limited
In Brief

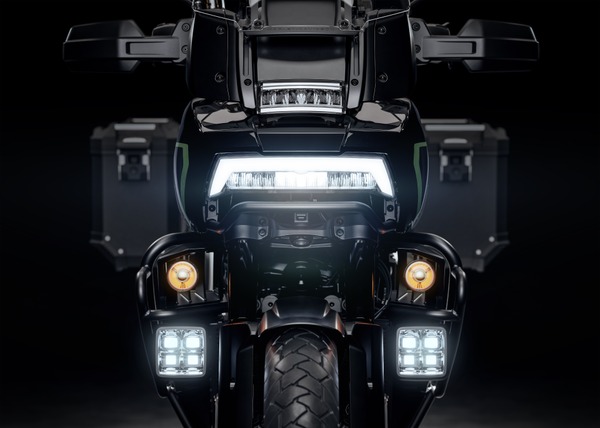

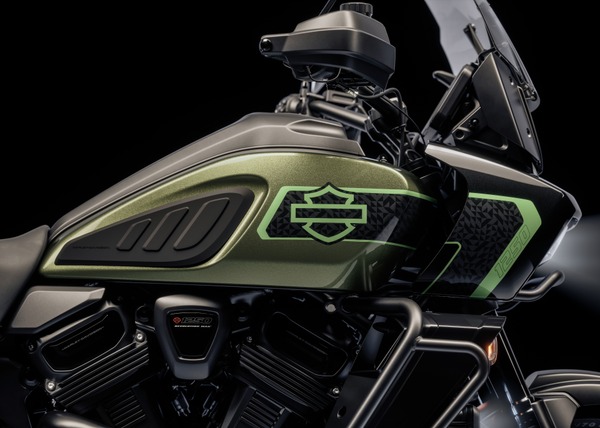

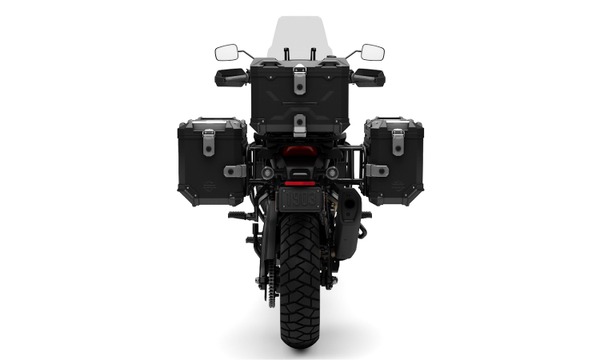

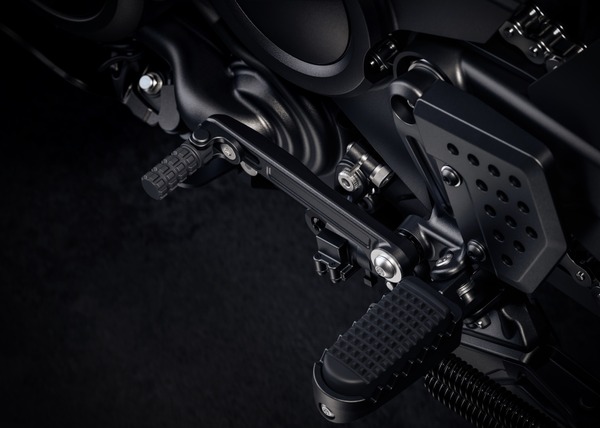

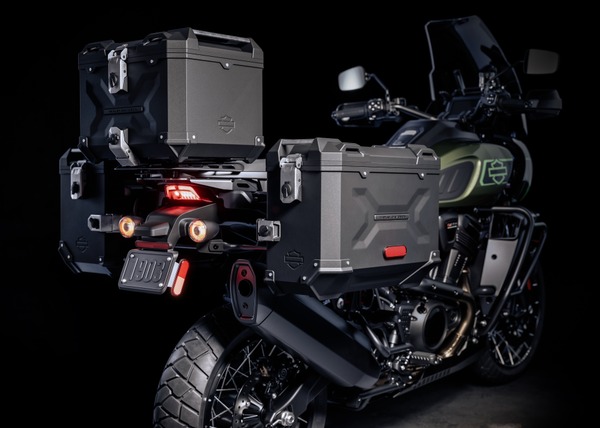

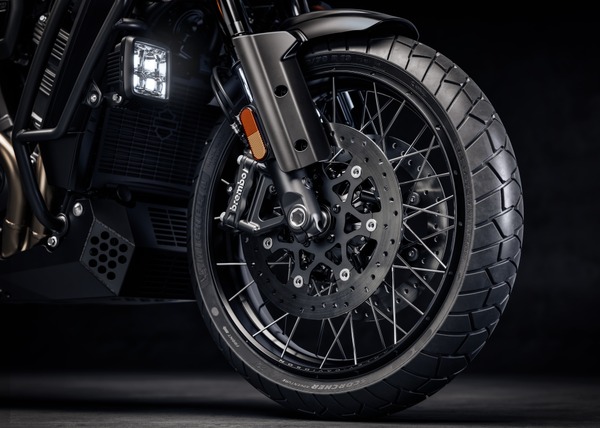

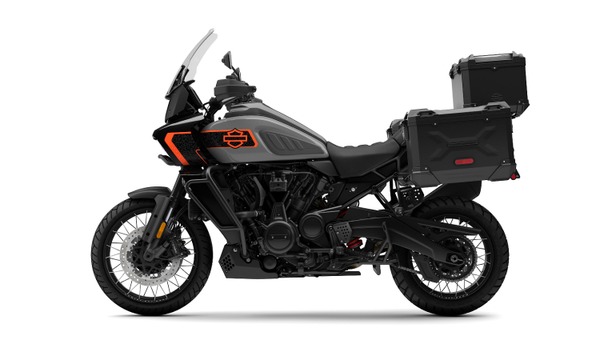

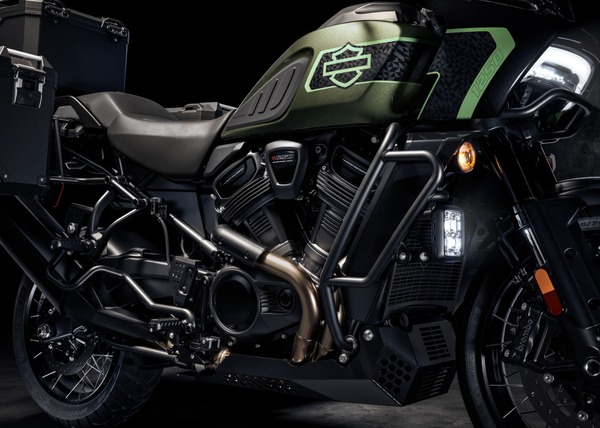

The 2026 Pan America® 1250 Limited steps up with new SW-MOTECH aluminum luggage, fresh paint and graphics, and refined finishes on the Revolution® Max 1250 motor for a sharper, classic look. Standard tubeless laced wheels, Adaptive Ride Height, and a Screamin’ Eagle® Quickshifter bring confidence and control when the ground gets unpredictable, while factory-installed guarding and auxiliary lighting make it a true turn-key adventure machine. It’s fully equipped, straight from the factory, and itching to get dirty.
Specifications
Download Specifications
Download Specifications
| Dimensions | RA1250L Pan America® 1250 Limited | |
| Length (*Cert) | 92.3 in. (2,345 mm) | |
| Overall Width (*Cert) | 43.1 in. (1,095 mm) | |
| Overall Height (*Cert) | 59.4 in. (1,510 mm) | |
| Seat Height, Laden | 2 | |
| Seat Height, Laden (Low seat position) | N/A | |
| Seat Height, Laden (High seat position) | N/A | |
| Seat Height, Laden (Low seat position with optional ARH suspension) | 30.4 in. (772 mm) | |
| Seat Height, Laden (High seat position with optional ARH suspension) | 31.4 in. (797 mm) | |
| Seat Height, Unladen (*Cert) | ||
| Seat Height, Unladen (Low seat position) | N/A | |
| Seat Height, Unladen (High seat position) | N/A | |
| Seat Height, Unladen (Low seat position with optional ARH suspension) | 32.1 in. (815 mm) | |
| Seat Height, Unladen (High seat position with optional ARH suspension) | 33.1 in. (840 mm) | |
| Static Ground Clearance (*Cert) | 7.1 in. (180 mm) | |
| Static Ground Clearance without ARH (*Cert) | N/A | |
| Static Ground Clearance with ARH (*Cert) | 6.1 in. (154 mm) | |
| Dynamic Ground Clearance (with optional suspension) | 6.9 in. (175 mm) | |
| Rake (steering head) (deg) | 25 | |
| Fork Angle (deg) | 25 | |
| Trail | 4.3 in. (108 mm) | |
| Wheelbase (*Cert) | 62.2 in. (1,580 mm) | |
| Tires, Type | Michelin® Scorcher “Adventure”, Radial | |
| Tires, Front Model | Scorcher Adventure | |
| Tires, Front Specification | 120/70R19 60V | |
| Tires, Rear Model | Scorcher Adventure | |
| Tires, Rear Specification | 170/60R17 72V | |
| Fuel Capacity | 5.6 gal. (21.2 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 4.75 qt. (4.5 l) | |
| Transmission Capacity | N/A | |
| Primary Chain Case Capacity | N/A | |
| Coolant Capacity | 2.32 qt. (2.2 l) | |
| Weight, As Shipped (*Cert) | 626 lb. (284 kg) | |
| Weight, In Running Order (*Cert) | 661 lb. (300 kg) | |
| Gross Vehicle Weight Rating (*Cert) | 1,034 lb. (469 kg) | |
| Gross Axle Weight Rating, Front (*Cert) | 399 lb. (181 kg) | |
| Gross Axle Weight Rating, Rear (*Cert) | 665 lb. (302 kg) | |
| Luggage Capacity -Volume | 4.24 cu ft (0.12 m3) |
| Engine | RA1250L Pan America® 1250 Limited | |

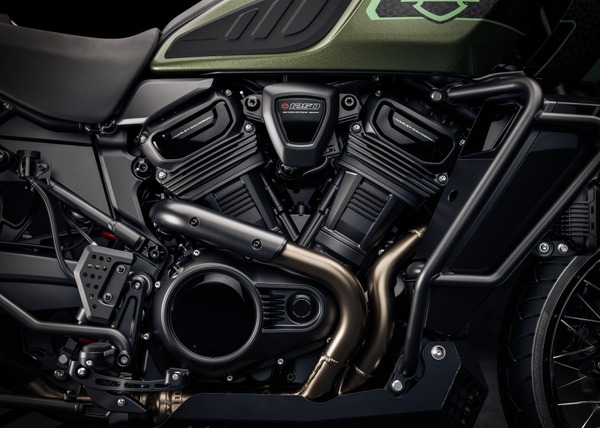

| Engine | Revolution® Max 1250 | |
| Valves | Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT; four valves per cylinder | |
| Bore (*Cert) | 4.134 in. (105 mm) | |
| Stroke (*Cert) | 2.846 in. (72.3 mm) | |
| Displacement (*Cert) | 76.4 cu in (1,252 cc) | |
| Compression Ratio (*Cert) | 13.0:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Downdraft intake, tuned velocity stacks, washable filter media | |
| Exhaust | 2-into-1-into-1; catalyst in header | |
| Lubrication System | Semi-Dry Sump |
| Drivetrain | RA1250L Pan America® 1250 Limited | |
| Primary Drive (*Cert) | Gear, 49/89 ratio | |
| Final Drive (*Cert) | Chain, 19/48 ratio | |
| Clutch | Mechanical, 8 plate wet, assist & slip, 1090N | |
| Transmission | 6-Speed | |
| Gear Ratios (overall) 1st (*Cert) | 13.11 | |
| Gear Ratios (overall) 2nd (*Cert) | 9.687 | |
| Gear Ratios (overall) 3rd (*Cert) | 7.509 | |
| Gear Ratios (overall) 4th (*Cert) | 6.057 | |
| Gear Ratios (overall) 5th (*Cert) | 5.08 | |
| Gear Ratios (overall) 6th (*Cert) | 4.436 |
| Chassis | RA1250L Pan America® 1250 Limited | |
| Frame | Stressed-member, high strength low alloy steel trellis frame; stamped, cast, and forged junctions; MIG welded; aluminum forged mid-structure | |
| Swingarm | One-piece cast aluminum | |
| Front Fork | 47 mm (1.9 in) inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps | |
| Front Fork, Optional | 47 mm (1.9 in) inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps | |

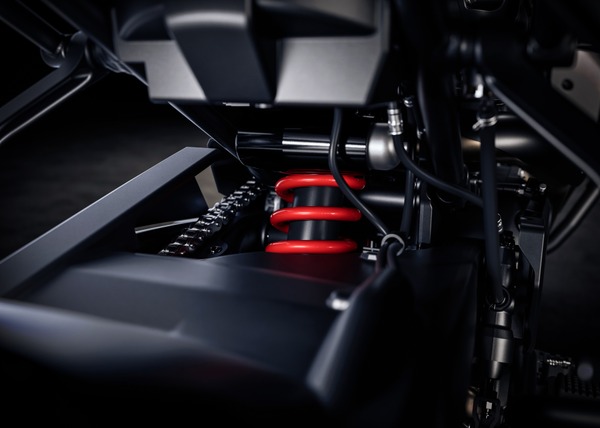

| Rear Shocks | Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping | |
| Rear Shocks, Optional | Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH) | |
| Wheels, Optional Style Type | Annodized aluminum tubeless laced | 4 |
| Wheels, Front Type | Aluminum cast, satin black | 4 |
| Wheels, Front Diameter | 19 in. (483 mm) | |
| Wheels, Front Width | 3 in. (76 mm) | |
| Wheels, Rear Type | Aluminum cast, satin black | 4 |
| Wheels, Rear Diameter | 17 in. (432 mm) | |
| Wheels, Rear Width | 4.5 in. (114 mm) | |
| Brakes, Caliper Type | Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper | |
| Brakes, Rotor Type | Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor | |
| Brakes, Front Diameter | 12.6 in. (320 mm) | |
| Brakes, Front Thickness | 0.17 in. (4.5 mm) | |
| Brakes, Front is dual | Yes | |
| Brakes, Rear Diameter | 11 in. (280 mm) | |
| Brakes, Rear Thickness | 0.2 in. (5 mm) | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 7.5 in. (191 mm) | |
| Suspension Travel, Rear | 7.5 in. (191 mm) |
| Performance | RA1250L Pan America® 1250 Limited | |
| Engine Torque Testing Method (*Cert) | J1349 | |
| Engine Torque (*Cert) | 94 ft-lb (127 Nm) | 5 |
| Engine Torque (rpm) (*Cert) | 6,750 | |
| Power (Hp/kW) (*Cert) | 150 HP / 112 kW @ 8750 rpm | |
| Lean Angle Testing Method | J1168 | |
| Lean Angle, Right (deg.) | 42 | |
| Lean Angle, Left (deg.) | 42 |
| Electric | RA1250L Pan America® 1250 Limited | |
| Battery | Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F | |
| Charging | Three-phase, 45 Amp system (390 Watts @13 Volts, 1300 rpm, 585 Watts max power @ 13 Volts, 2500 rpm) | |
| Starting | 0.9 kW electric with direct drive starter motor engagement | |
| Lights (as per country regulation), Headlamp | Daymaker® Adaptive LED Headlamp with 6-segment LED banking lamp | |
| Lights (as per country regulation), Tail/Stop | All LED Tail/Stop lamp with signature tail lighting | |
| Lights (as per country regulation), Front Signal Lights | LED Bullet Turn Signals | |
| Lights, Rear Turn Signals | LED Bullet Turn Signals | |

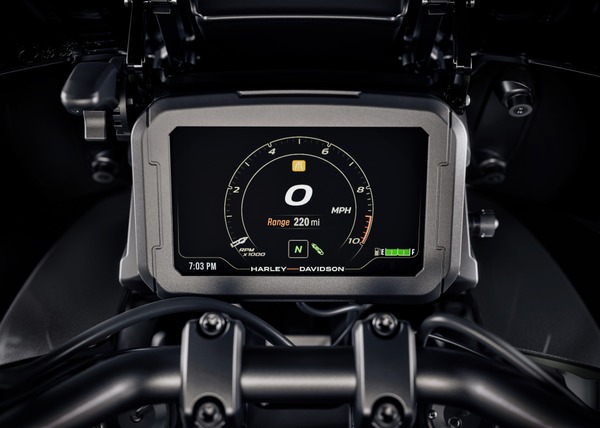

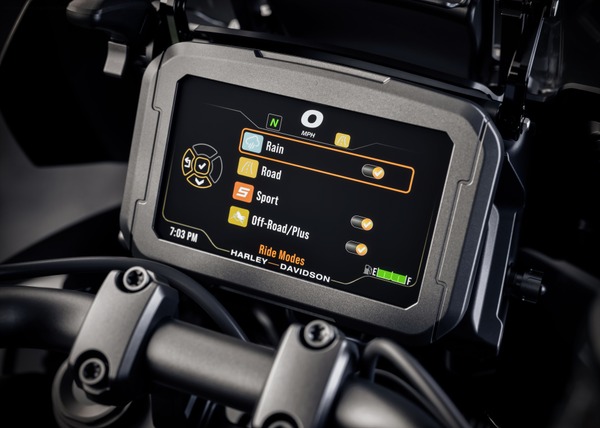

| Gauges | 6.8 inch (173 mm) viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) | |
| Auxiliary Lamps | Fog lamps & driving beams | |
| Electric Power Outlet | USB C-Type , Output 5V at 2.4 Amp | |
| GPS System | N/A | |
| Reverse | N/A |
| Fuel Economy | RA1250L Pan America® 1250 Limited | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 46 mpg (5.1 l/100 km) |
| Infotainment | RA1250L Pan America® 1250 Limited | |
| Infotainment system | N/A | |
| Screen Size | 6.8 in (173 mm) | |
| Type | Color TFT w/ Touch | |
| Watts Per Channel | N/A | |
| Watts per Channel | ||
| Speakers | N/A | |
| Speaker Size | N/A | |
| Headset Specifications (if equipped) | Bluetooth | |
| AM | N/A | |
| FM | N/A | |
| MW | N/A | |
| LW | N/A | |
| Weather Band (WB) | N/A | |
| SD Card, Flash Drive and MP3 - via USB Connection | N/A | |
| Hands-free Mobile Phone - via Bluetooth | Standard | |
| Rider/Passenger Intercom | Headset function only | |
| Vehicle Information Screen (Air temperature, oil pressure and EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp | |
| Text-to-Speech (TTS) Languages | Phone dependent | |
| USB | Charging and Instrument update, USB-C, 5V, 3A | |
| Phone Connectivity | ||
| Bluetooth | Phone/Media Supported | |
| Navigation - via Bluetooth | H-D Mobile App |
| Rider Safety Enhancements | RA1250L Pan America® 1250 Limited | |
| Anti-lock Brake System (ABS) | Included | |
| Electronic Linked Braking (ELB) | Included | |
| Traction Control System (TCS) | Included | |
| Drag-torque Slip Control System (DSCS) | Included | |
| Vehicle Hold Control (VHC) | Included | |
| Tire Pressure Monitoring System (TPMS) | Included | |
| Wheel Lift Mitigation | Included |
| Cornering Rider Safety Enhancements | RA1250L Pan America® 1250 Limited | |
| Cornering Enhanced Anti-lock Brake System (C-ABS) | Included | |
| Cornering Enhanced Electronic Linked Braking (C-ELB) | Included | |
| Cornering Enhanced Traction Control System (C-TCS) | Included | |
| Cornering Drag-Torque Slip Control System (C-DSCS) | Included | |
| Enhanced Lift Mitigation | Included |
| Warranty And Service | RA1250L Pan America® 1250 Limited | |
| Warranty | 24 months (unlimited mileage) | 6 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 7 |
| Footnotes | RA1250L Pan America® 1250 Limited | |
| 1 | Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. | |
| 2 | Measurement reflects 180 lb. (81.7 kg) operator weight. | |
| 3 | Recommended 91 octane or higher fuel (R+M)/2. | |
| 4 | Standard and optional wheels may vary by country and region. | |
| 5 | Values shown are nominal. Performance may vary by country and region. | |
| 6 | See motorcycle owner’s manual for complete details. | |
| 7 | Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details. |
