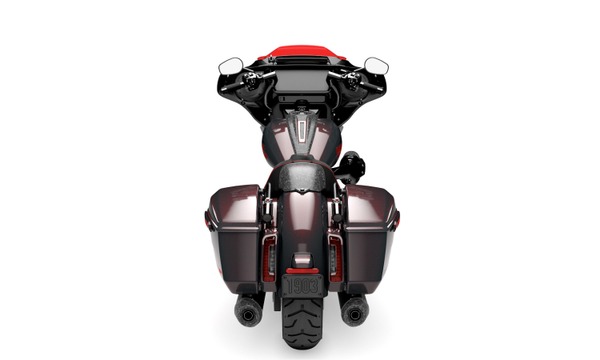

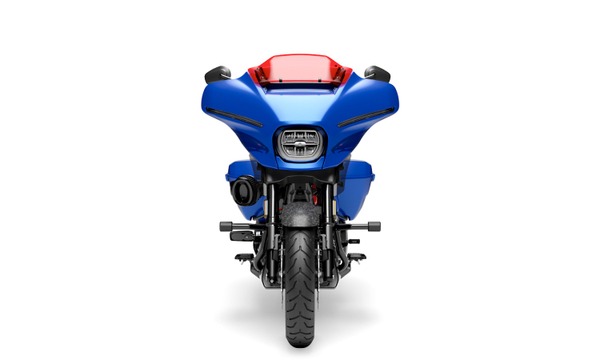

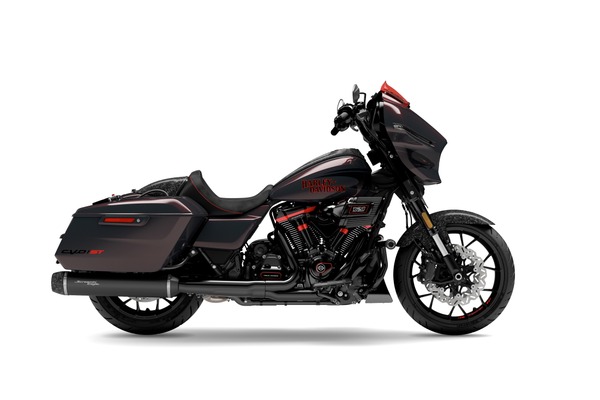

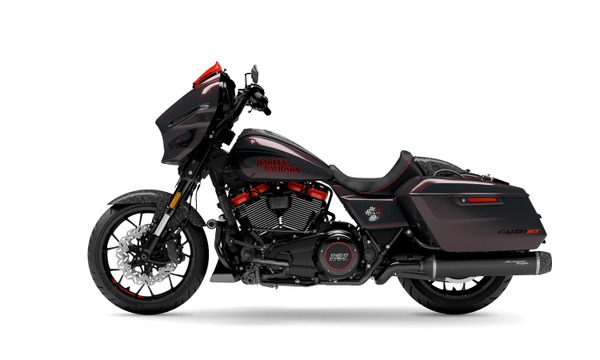

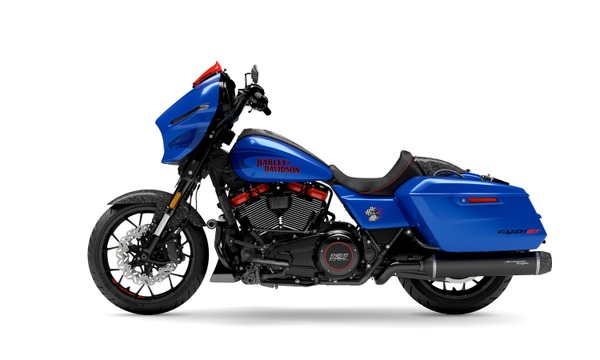

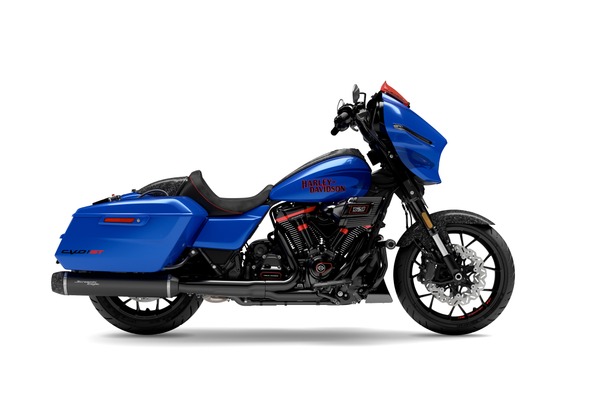

CVO™ CVO Street Glide ST
In Brief

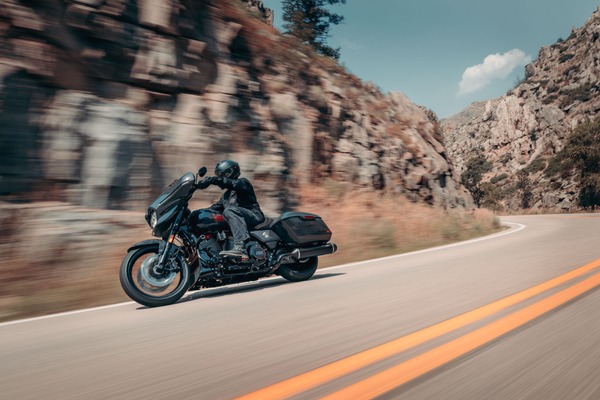

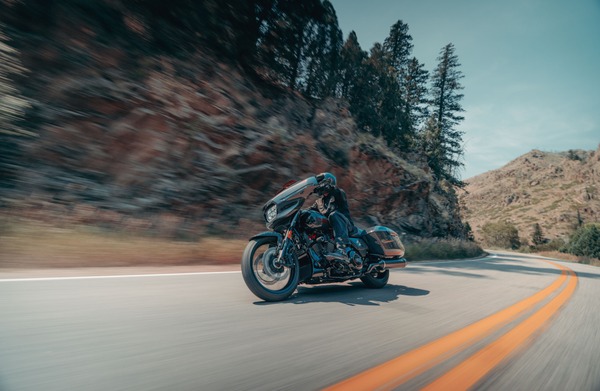

Introducing a new chapter in the CVO™ story: the 2026 CVO Street Glide ST. All new for 2026, the CVO Street Glide ST takes the Batwing bagger into uncharted territory. Its Heavy Breather intake gives it lungs to match its attitude, while floating front rotors, eight selectable ride modes (including Track and Track+), and remote-reservoir suspension bring race-bred precision to the street. Forged carbon details and the Milwaukee-Eight® 121 High Output motor make it luxury and ruthlessness in a machine that doesn’t know the meaning of the word “quit.”
Specifications
Download Specifications
Download Specifications
| Dimensions | FLHXSTSE CVO™ Street Glide® ST | |
| Length (*Cert) | 94.9 in. (2,410 mm) | |
| Overall Width (*Cert) | 38.6 in. (980 mm) | |
| Overall Height (*Cert) | 52.4 in. (1,330 mm) | |
| Seat Height, Laden | 27.5 in. (699 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position) | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen (*Cert) | 29.1 in. (740 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance (*Cert) | 5.3 in. (135 mm) | |
| Static Ground Clearance without ARH (*Cert) | ||
| Static Ground Clearance with ARH (*Cert) | ||
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) (deg) | 26 | |
| Fork Angle (deg) | 29.25 | |
| Trail | 6.7 in. (170 mm) | |
| Wheelbase (*Cert) | 64 in. (1,625 mm) | |
| Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall front and rear | |
| Tires, Front Model | D408F | |
| Tires, Front Specification | 130/60B19 M/C 61H | |
| Tires, Rear Model | D407T | |
| Tires, Rear Specification | 180/55B18 M/C 80H | |
| Fuel Capacity | 6 gal. (22.7 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 5 qt. (4.7 l) | |
| Transmission Capacity | 1 qt. (.95 l ) | |
| Primary Chain Case Capacity | 1.1 qts. (1 l) | |
| Coolant Capacity | 0.82 qt. (0.78 l) | |
| Weight, As Shipped (*Cert) | 782 lb. (355 kg) | |
| Weight, In Running Order (*Cert) | 816 lb. (370 kg) | |
| Gross Vehicle Weight Rating (*Cert) | 1,360 lb. (617 kg) | |
| Gross Axle Weight Rating, Front (*Cert) | 500 lb. (227 kg) | |
| Gross Axle Weight Rating, Rear (*Cert) | 927 lb. (420 kg) | |
| Luggage Capacity -Volume | 2.42 cu ft (0.069 m3) |
| Engine | FLHXSTSE CVO™ Street Glide® ST | |
| Engine | Milwaukee-Eight® 121 High Output | |
| Valves | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder | |
| Bore (*Cert) | 4.075 in. (103.5 mm) | |
| Stroke (*Cert) | 4.625 in. (117.5 mm) | |
| Displacement (*Cert) | 121 cu in (1,977 cc) | |
| Compression Ratio (*Cert) | 11.4:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Fiberglass, washable | |
| Exhaust | 2-1-2 dual exhaust with tapered mufflers | |
| Lubrication System | Pressurized, dry-sump |
| Drivetrain | FLHXSTSE CVO™ Street Glide® ST | |
| Primary Drive (*Cert) | Chain, 34/46 ratio | |
| Final Drive (*Cert) | Belt, 30/68 ratio | |
| Clutch | Mechanically actuated 10 plate wet, Assist and Slip | |
| Transmission | 6-Speed Cruise Drive® | |
| Gear Ratios (overall) 1st (*Cert) | 10.233 | |
| Gear Ratios (overall) 2nd (*Cert) | 7.093 | |
| Gear Ratios (overall) 3rd (*Cert) | 5.268 | |
| Gear Ratios (overall) 4th (*Cert) | 4.266 | |
| Gear Ratios (overall) 5th (*Cert) | 3.635 | |
| Gear Ratios (overall) 6th (*Cert) | 3.067 |
| Chassis | FLHXSTSE CVO™ Street Glide® ST | |
| Frame | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin down-tubes; bolt-on rear frame with forged fender supports; MIG welded. | |
| Swingarm | Mild steel; two-piece drawn and welded section; forged junctions; MIG welded. | |
| Front Fork | 1.9 in. (47 mm) Inverted 1x1 Front Forks with adjustable preload, compression damping and rebound damping | |
| Front Fork, Optional | ||
| Rear Shocks | Emulsion suspension with adjustable preload, compression damping and rebound damping | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | N/A | 4 |
| Wheels, Front Type | Black, 7-spoke Cast Aluminum | 4 |
| Wheels, Front Diameter | 19 in. (483 mm) | |
| Wheels, Front Width | 3.5 in. (89 mm) | |
| Wheels, Rear Type | Black, 7-spoke Cast Aluminum | 4 |
| Wheels, Rear Diameter | 18 in. (457 mm) | |
| Wheels, Rear Width | 5 in. (127 mm) | |
| Brakes, Caliper Type | 4-piston fixed dual radial mounted front, and single axial mounted rear | |
| Brakes, Rotor Type | Wave Style, dual floating rotors (front), fixed rotor (rear) | |
| Brakes, Front Diameter | 12.6 in. (320 mm) | |
| Brakes, Front Thickness | 0.18 in. (4.5 mm) | |
| Brakes, Front is dual | Yes | |
| Brakes, Rear Diameter | 11.8 in. (300 mm) | |
| Brakes, Rear Thickness | 0.28 in. (7 mm) | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 4.6 in. (117 mm) | |
| Suspension Travel, Rear | 3 in. (76 mm) |
| Performance | FLHXSTSE CVO™ Street Glide® ST | |
| Engine Torque Testing Method (*Cert) | J1349 | |
| Engine Torque (*Cert) | 145 ft-lb (197 Nm) | 5 |
| Engine Torque (rpm) (*Cert) | 4,000 | |
| Power (Hp/kW) (*Cert) | 127 HP / 95 kW @ 4900 rpm | |
| Lean Angle Testing Method | SAE J1168 | |
| Lean Angle, Right (deg.) | 31 | |
| Lean Angle, Left (deg.) | 31 |
| Electric | FLHXSTSE CVO™ Street Glide® ST | |
| Battery | Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating) | |
| Charging | Three-phase, 58-amp system (754W max power @ 13V) | |
| Starting | 1.6 kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | LED | |
| Lights (as per country regulation), Tail/Stop | LED | |
| Lights (as per country regulation), Front Signal Lights | LED | |
| Lights, Rear Turn Signals | LED | |
| Gauges | Digital gauges integrated within the display | |
| Auxiliary Lamps | N/A | |
| Electric Power Outlet | 15 Watt USB-C electric power accessory port in media storage box | |
| GPS System | Yes, embedded navigation system with real-time traffic and weather via Wi-Fi Hotspot (Subscription required in the US) | |
| Reverse | N/A |
| Fuel Economy | FLHXSTSE CVO™ Street Glide® ST | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 44 mpg (5.3 l/100 km) |
| Infotainment | FLHXSTSE CVO™ Street Glide® ST | |
| Infotainment system | Skyline™ OS | |
| Screen Size | 12.3 in (312 mm) | |
| Type | Full Color TFT | |
| Watts Per Channel | 125 | |
| Watts per Channel | ||
| Speakers | 2 | |
| Speaker Size | Two 6.5 in. (165 mm) fairing speakers | |
| Headset Specifications (if equipped) | N/A | |
| AM | Standard | |
| FM | Standard | |
| MW | N/A | |
| LW | N/A | |
| Weather Band (WB) | N/A | |
| SD Card, Flash Drive and MP3 - via USB Connection | Supported | |
| Hands-free Mobile Phone - via Bluetooth | Standard | |
| Rider/Passenger Intercom | Rider and passenger headsets sold separately; VOX is available for H-D headsets | |
| Vehicle Information Screen (Air temperature, oil pressure and EITMS) | Standard | |
| Text-to-Speech (TTS) Languages | Same as Languages list | |
| USB | USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage | |
| Phone Connectivity | Apple CarPlay (wireless or wired) | |
| Bluetooth | Phone/Media Player, Headset | |
| Navigation - via Bluetooth |
| Rider Safety Enhancements | FLHXSTSE CVO™ Street Glide® ST | |
| Anti-lock Brake System (ABS) | Included | |
| Electronic Linked Braking (ELB) | Included | |
| Traction Control System (TCS) | Included | |
| Drag-torque Slip Control System (DSCS) | Included | |
| Vehicle Hold Control (VHC) | Included | |
| Tire Pressure Monitoring System (TPMS) | Included | |
| Wheel Lift Mitigation | N/A |
| Cornering Rider Safety Enhancements | FLHXSTSE CVO™ Street Glide® ST | |
| Cornering Enhanced Anti-lock Brake System (C-ABS) | Included | |
| Cornering Enhanced Electronic Linked Braking (C-ELB) | Included | |
| Cornering Enhanced Traction Control System (C-TCS) | Included | |
| Cornering Drag-Torque Slip Control System (C-DSCS) | Included | |
| Enhanced Lift Mitigation | N/A |
| Warranty And Service | FLHXSTSE CVO™ Street Glide® ST | |
| Warranty | 24 months (unlimited mileage) | 6 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 7 |
| Footnotes | FLHXSTSE CVO™ Street Glide® ST | |
| 1 | Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. | |
| 2 | Measurement reflects 180 lb. (81.7 kg) operator weight. | |
| 3 | Recommended 91 octane or higher fuel (R+M)/2. | |
| 4 | Standard and optional wheels may vary by country and region. | |
| 5 | Values shown are nominal. Performance may vary by country and region. | |
| 6 | See motorcycle owner’s manual for complete details. | |
| 7 | Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details. |
