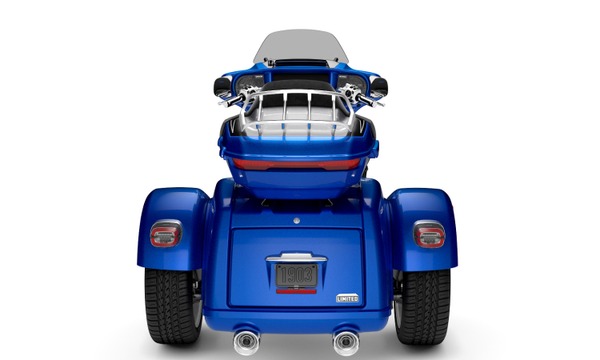

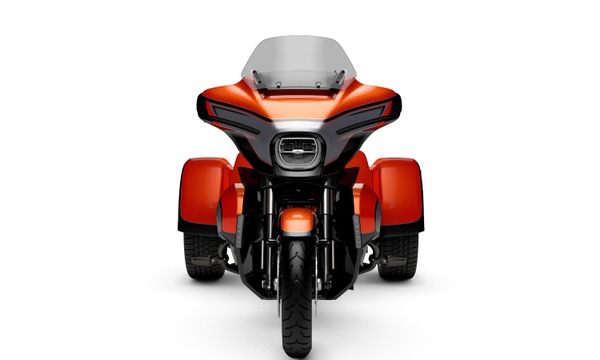

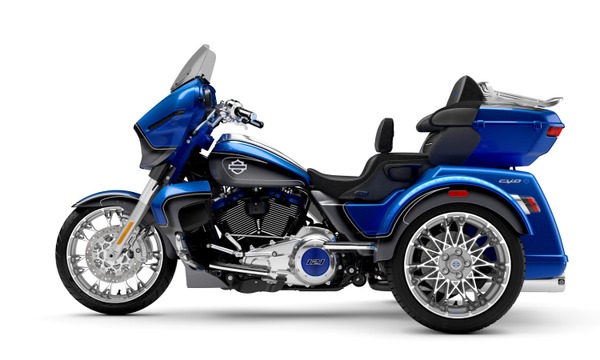

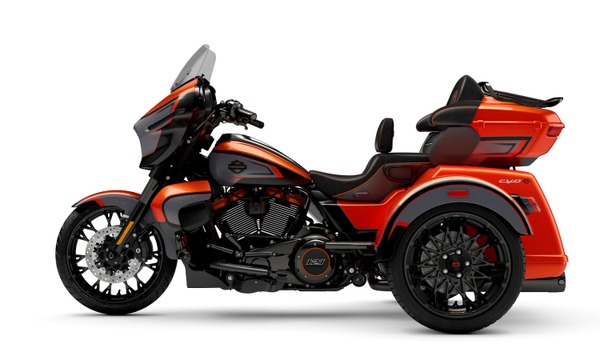

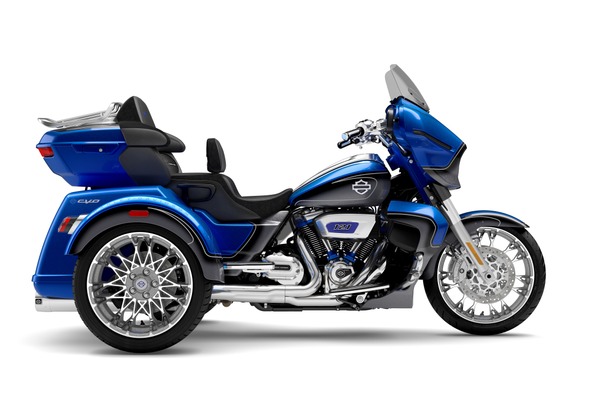

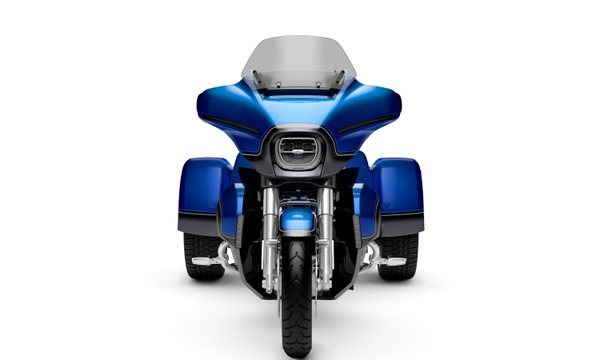

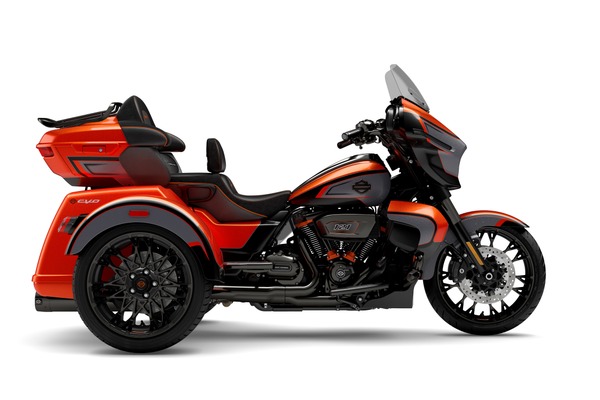

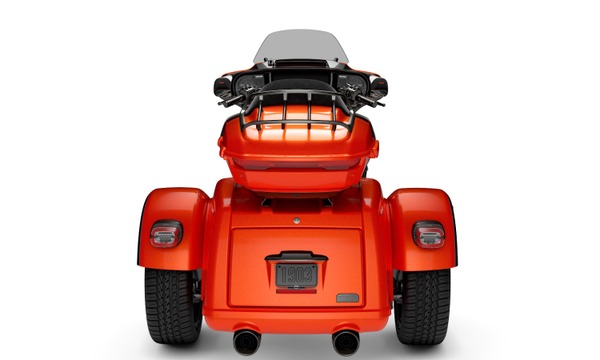

CVO™ Street Glide 3 Limited®
In Brief
Trust us when we say this is a whole different kind of Trike. At the heart of the CVO Street Glide 3 Limited is the Milwaukee-Eight® VVT 121 motor, paired with a redesigned suspension and a new electric reverse system that make three-wheel touring feel commanding and assured. Heated seats, a trunk, the completely redesigned all-new Grand Tour-Pak®, 12.3” (312 mm) TFT display with Skyline™ OS, premium H-D™ audio, and exclusive CVO colorways elevate this machine into legend territory.
Available at selected H-D dealerships. Please contact your local H-D dealer to check.
Specifications
Download Specifications
Download Specifications
| Dimensions | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Length (*Cert) | 105.7 in. (2,685 mm) | |
| Overall Width (*Cert) | 57.3 in. (1,455 mm) | |
| Overall Height (*Cert) | 56.5 in. (1,435 mm) | |
| Seat Height, Laden | 27.3 in. (693 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position) | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen (*Cert) | 28.9 in. (735 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance (*Cert) | 5.1 in. (130 mm) | |
| Static Ground Clearance without ARH (*Cert) | ||
| Static Ground Clearance with ARH (*Cert) | ||
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) (deg) | 26 | |
| Fork Angle (deg) | 32 | |
| Trail | 3.8 in. (96 mm) | |
| Wheelbase (*Cert) | 67.7 in. (1,720 mm) | |
| Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear | |
| Tires, Front Model | D408F | |
| Tires, Front Specification | 130/60B19 M/C 61H | |
| Tires, Rear Model | TK100 | |
| Tires, Rear Specification | P215/45R18 83T | |
| Fuel Capacity | 6 gal. (22.7 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 5 qt. (4.7 l) | |
| Transmission Capacity | 1.22 qts. (1.15 l) | |
| Primary Chain Case Capacity | 1.1 qts. (1 l) | |
| Coolant Capacity | 0.82 qt. (0.78 l) | |
| Weight, As Shipped (*Cert) | 1,243 lb. (564 kg) | |
| Weight, In Running Order (*Cert) | 1,283 lb. (582 kg) | |
| Gross Vehicle Weight Rating (*Cert) | 1,700 lb. (771 kg) | |
| Gross Axle Weight Rating, Front (*Cert) | 511 lb. (232 kg) | |
| Gross Axle Weight Rating, Rear (*Cert) | 1,189 lb. (539 kg) | |
| Luggage Capacity -Volume | 7.1 cu ft (0.201 m3) |
| Engine | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Engine | Milwaukee-Eight® VVT 121 | |
| Valves | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder | |
| Bore (*Cert) | 4.075 in. (103.5 mm) | |
| Stroke (*Cert) | 4.625 in. (117.5 mm) | |
| Displacement (*Cert) | 121 cu in (1,977 cc) | |
| Compression Ratio (*Cert) | 11.4:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Synthetic Felt, Washable | |
| Exhaust | 2-1-2 dual exhaust | |
| Lubrication System | Pressurized, dry-sump |
| Drivetrain | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Primary Drive (*Cert) | Chain, 34/46 ratio | |
| Final Drive (*Cert) | Belt, 30/70 ratio | |
| Clutch | Mechanically actuated 10 plate wet, Assist and Slip | |
| Transmission | 6 Speed Cruise Drive w/ Reverse | |
| Gear Ratios (overall) 1st (*Cert) | 10.534 | |
| Gear Ratios (overall) 2nd (*Cert) | 7.302 | |
| Gear Ratios (overall) 3rd (*Cert) | 5.423 | |
| Gear Ratios (overall) 4th (*Cert) | 4.392 | |
| Gear Ratios (overall) 5th (*Cert) | 3.742 | |
| Gear Ratios (overall) 6th (*Cert) | 3 |
| Chassis | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Frame | Mild steel, square-section backbone with twin downtubes | |
| Swingarm | Permanent mold cast aluminum | |
| Front Fork | 1.9 in (49mm) dual bending valve | |
| Front Fork, Optional | ||
| Rear Shocks | Hand-adjustable emulsion rear suspension | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | N/A | 4 |
| Wheels, Front Type | Dual Grain, Chrome, 14-spoke | 4 |
| Wheels, Front Diameter | 19 in. (483 mm) | |
| Wheels, Front Width | 3.5 in. (89 mm) | |
| Wheels, Rear Type | Dual Grain, Chrome, 14-spoke | 4 |
| Wheels, Rear Diameter | 18 in. (457 mm) | |
| Wheels, Rear Width | 7 in. (178 mm) | |
| Brakes, Caliper Type | Front: 32 mm 4 piston fixed, Rear: floating 36 mm piston integrated park brake | |
| Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) | |
| Brakes, Front Diameter | 11.8 in. (300 mm) | |
| Brakes, Front Thickness | 0.197 in. (5 mm) | |
| Brakes, Front is dual | Yes | |
| Brakes, Rear Diameter | 11.8 in. (300 mm) | |
| Brakes, Rear Thickness | 0.276 in. (7 mm) | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 4.6 in. (117 mm) | |
| Suspension Travel, Rear | 3.46 in. (88 mm) |
| Performance | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Engine Torque Testing Method (*Cert) | J1349 | |
| Engine Torque (*Cert) | 138 ft-lb (187 Nm) | 5 |
| Engine Torque (rpm) (*Cert) | 3,750 | |
| Power (Hp/kW) (*Cert) | 114 HP / 85 kW @ 4500 rpm | |
| Lean Angle Testing Method | N/A | |
| Lean Angle, Right (deg.) | N/A | |
| Lean Angle, Left (deg.) | N/A |
| Electric | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Battery | Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per battery Council International Rating) | |
| Charging | Three Phase, 48-amp system (600W@13V, 2000 rpm, 625W max power @ 13V) | |
| Starting | 1.6kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | LED | |
| Lights (as per country regulation), Tail/Stop | LED | |
| Lights (as per country regulation), Front Signal Lights | LED | |
| Lights, Rear Turn Signals | LED | |
| Gauges | Digital gauges integrated within the display | |
| Auxiliary Lamps | LED Fog Lamps integrated into Lower Fairings | |
| Electric Power Outlet | 15 Watt USB-C electric power accessory port in media storage box | |
| GPS System | Yes, embedded navigation system with real-time traffic and weather via Wi-Fi Hotspot (Subscription required in the US) | |
| Reverse | Electric reverse actuated by handlebar mounted hand controls |
| Fuel Economy | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 39 mpg (6 l/100 km) |
| Infotainment | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Infotainment system | Skyline™ OS | |
| Screen Size | 12.3 in (312 mm) | |
| Type | Full Color TFT | |
| Watts Per Channel | 50 | |
| Watts per Channel | 125 (4) & 150 (2) | |
| Speakers | 6 | |
| Speaker Size | Two 6.5 in. (165 mm) fairing speakers, two 6.5 in. (165 mm) Tour-pak speakers, and two 6.5 in. (165 mm) lower fairing speakers | |
| Headset Specifications (if equipped) | Harley-Davidson® Packtalk Edge wireless Bluetooth® headset | |
| AM | Standard | |
| FM | Standard | |
| MW | N/A | |
| LW | N/A | |
| Weather Band (WB) | N/A | |
| SD Card, Flash Drive and MP3 - via USB Connection | Supported | |
| Hands-free Mobile Phone - via Bluetooth | Standard | |
| Rider/Passenger Intercom | Standard (Passenger Headset Sold Separately); VOX is available for H-D headsets | |
| Vehicle Information Screen (Air temperature, oil pressure and EITMS) | Standard | |
| Text-to-Speech (TTS) Languages | Same as Languages list | |
| USB | USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage | |
| Phone Connectivity | Apple CarPlay (wireless or wired) | |
| Bluetooth | Phone/Media Player, Headset | |
| Navigation - via Bluetooth |
| Rider Safety Enhancements | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Anti-lock Brake System (ABS) | Included | |
| Electronic Linked Braking (ELB) | Included | |
| Traction Control System (TCS) | Included | |
| Drag-torque Slip Control System (DSCS) | Included | |
| Vehicle Hold Control (VHC) | N/A | |
| Tire Pressure Monitoring System (TPMS) | Included | |
| Wheel Lift Mitigation | N/A |
| Cornering Rider Safety Enhancements | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Cornering Enhanced Anti-lock Brake System (C-ABS) | Included | |
| Cornering Enhanced Electronic Linked Braking (C-ELB) | Included | |
| Cornering Enhanced Traction Control System (C-TCS) | Included | |
| Cornering Drag-Torque Slip Control System (C-DSCS) | Included | |
| Enhanced Lift Mitigation | N/A |
| Warranty And Service | FLHLTSE CVO™ Street Glide® 3 Limited | |
| Warranty | 24 months (unlimited mileage) | 6 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 7 |
| Footnotes | FLHLTSE CVO™ Street Glide® 3 Limited | |
| 1 | Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. | |
| 2 | Measurement reflects 180 lb. (81.7 kg) operator weight. | |
| 3 | Recommended 91 octane or higher fuel (R+M)/2. | |
| 4 | Standard and optional wheels may vary by country and region. | |
| 5 | Values shown are nominal. Performance may vary by country and region. | |
| 6 | See motorcycle owner’s manual for complete details. | |
| 7 | Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details. |
